WB200
WB200 and W-S-U Installation and Troubleshooting Video

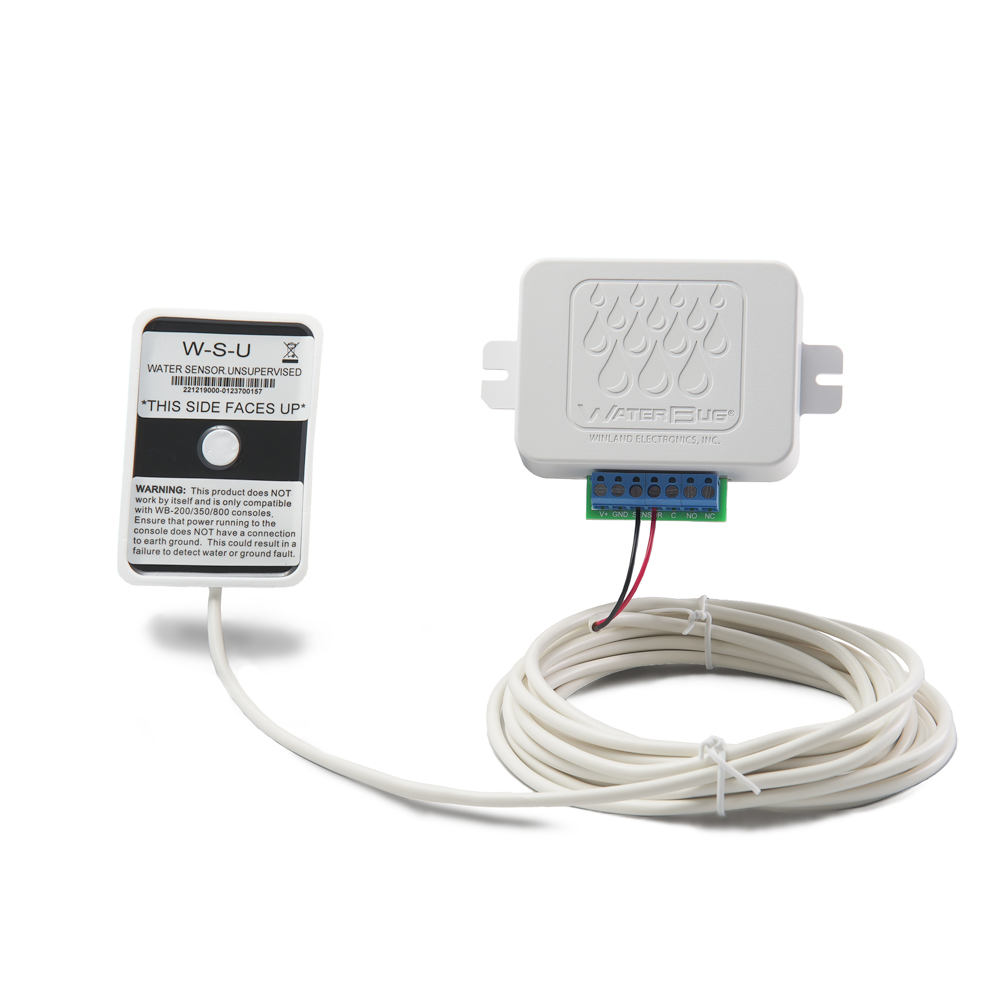

The WaterBug® 200 is a water detection device ideal for computer rooms, document storage areas, warehouses, sump pumps and basements. WaterBug sensors activate the alarm when a conductive bridge is formed between 2 contacts. Protect your assets with the WB200.
The WaterBug® 200 is now available as the device only – WB200-DO (M-001-0180). This is the same WaterBug® 200 device that has been available for many years but the W-S-U (M-001-0106) will not be included. Customers can purchase the same W-S-U (M-001-0106) or the new WBROPE-KIT (M-001-0185) with the ability to add extensions to the water rope with the WBROPE-EXT (M-001-0186). This allows users to customize the water sensor options available from Winland™ Electronics, Inc.
Features
- Can be used to detect an absence of water
- Hard wire powered console unit
Sensors and Accessories
Documents
Q: What are the power requirements for the WB200?
A: 8 – 29 Volts DC @ 35 mA or 8 – 28 Volts AC @ 100 mA
Q: What sensors can be used with this device?
A:
- W-S-U (M-001-0106)
- WBROPE-KIT (M-001-0185) – must remove endcap resistor from WBROPE-KIT to be used as unsupervised sensor. Water rope length may be increased with the use of the WBROPE-EXT (M-001-0186).
Q: Can I use a supervised sensor?
A: No
Q: How to I wire multiple sensors?
A: You need to wire them in parallel. Wiring Guide
Q: Can the probes be extended?
A: Yes.
A: For WBROPE-KIT see: WBROPE-KIT Specification Sheet
A: For W-S-U see: W-S-U Specification Sheet
Q: What is the cause if the sensor keeps going into false alarm?
A: If using a W-S-U and sensor is placed on a concrete floor this can cause false alarms (put a piece of wax paper under the sensor). Power loss will also cause a false alarm.
If using the WBROPE-KIT and WBROPE-EXT, overextending the water rope length may cause false alarms.
Q: How much water does it take to trip the sensor?
A: If using the W-S-U there needs to be a bridge across two of the metal contacts on the sensor.
A: If using the WBROPE-KIT it will alarm for small amounts of water contacting wire inside mesh.
Q: How many WBROPE-EXT's can I add to a WBROPE-KIT for the WB350?
A: You may add up to nine (9) WBROPE-EXT’s per WB350.
