WB350

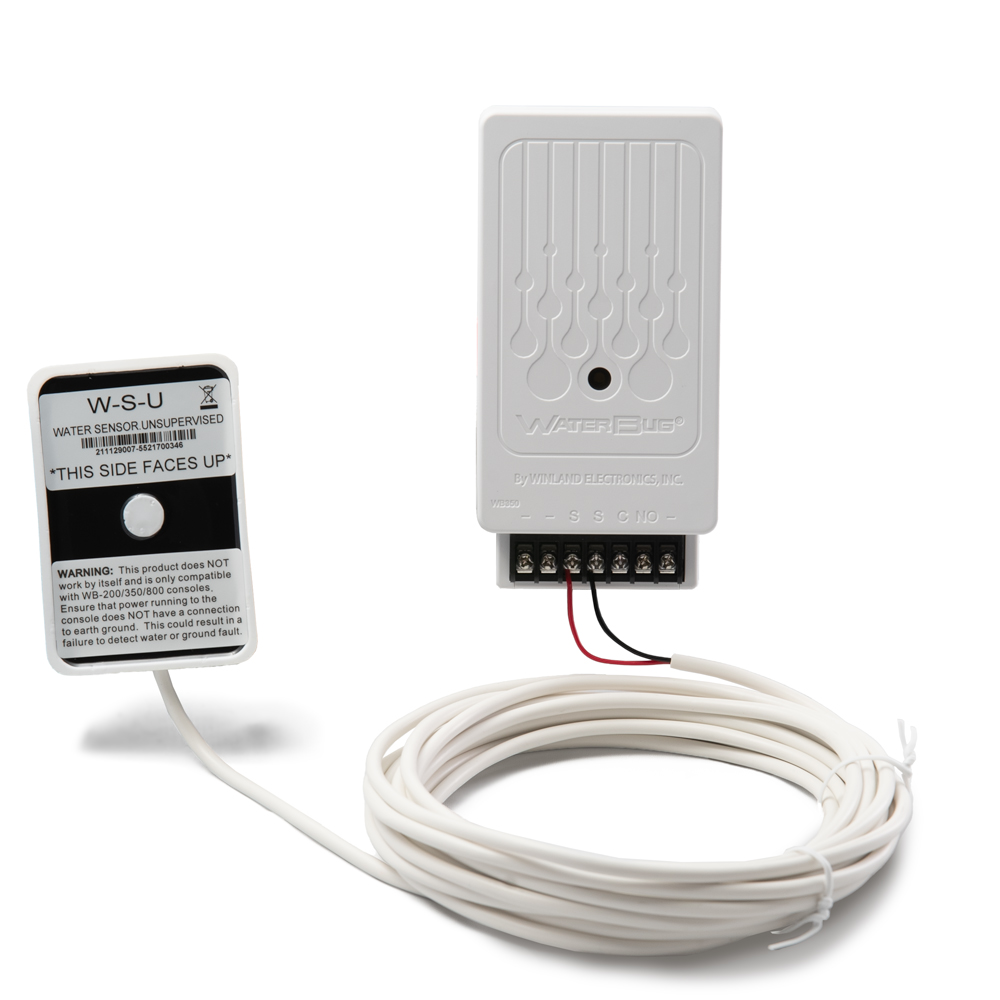

The WaterBug® 350, water detection device, is ideal for computer rooms, document storage areas, warehouses, sump pumps and basements. WaterBug sensors activate the alarm when a conductive bridge is formed between 2 contacts. Protect your assets with the WB350.

The WaterBug® 350 is now available as the device only – WB350-DO (M-001-0181). This is the same WaterBug® 350 device that has been available for many years but the W-S-U (M-001-0106) will not be included. Customers can purchase the same W-S-U (M-001-0106) or the new WBROPE-KIT (M-001-0185) with the ability to add extensions to the water rope with the WBROPE-EXT (M-001-0186). This allows users to customize the water sensor options available from Winland™ Electronics, Inc.

Features
  • Low battery alarm
  • Internal audible alarm
  • Sensors not included with device, see options below
  • Utilizes 9V battery for stand-alone operation, battery not included
Sensors

Q: What are the power requirements for the WB350?

A: 9 Volt battery

Q: What sensors can be used with this device?

A:

  • W-S-U (M-001-0106)
  • WBROPE-KIT (M-001-0185) – must remove endcap resistor from WBROPE-KIT to be used as unsupervised sensor. Water rope length may be increased with the use of the WBROPE-EXT (M-001-0186).
Q: Can I use a supervised sensor?

A: No

Q: How do I wire multiple sensors?

A: You need to wire them in parallel. Wiring Guide

Q: Can the probes be extended?

A: Yes.

A: For WBROPE-KIT see: WBROPE-KIT Specification Sheet

A: For W-S-U see: W-S-U Specification Sheet

Q: What is the cause if the sensor keeps going into false alarm?

A: If using a W-S-U and sensor is placed on a concrete floor this can cause false alarms (put a piece of wax paper under the sensor).  Low battery will start chirping the buzzer.

If using the WBROPE-KIT and WBROPE-EXT, overextending the water rope length may cause false alarms.

Q: How much water does it take to trip the sensor?

A: If using the W-S-U there needs to be a bridge across two of the metal contacts on the sensor.

A: If using the WBROPE-KIT it will alarm for small amounts of water contacting wire inside mesh.

Q: How many WBROPE-EXT's can I add to a WBROPE-KIT for the WB350?

A: You may add up to nine (9) WBROPE-EXT’s per WB350.
